Construction

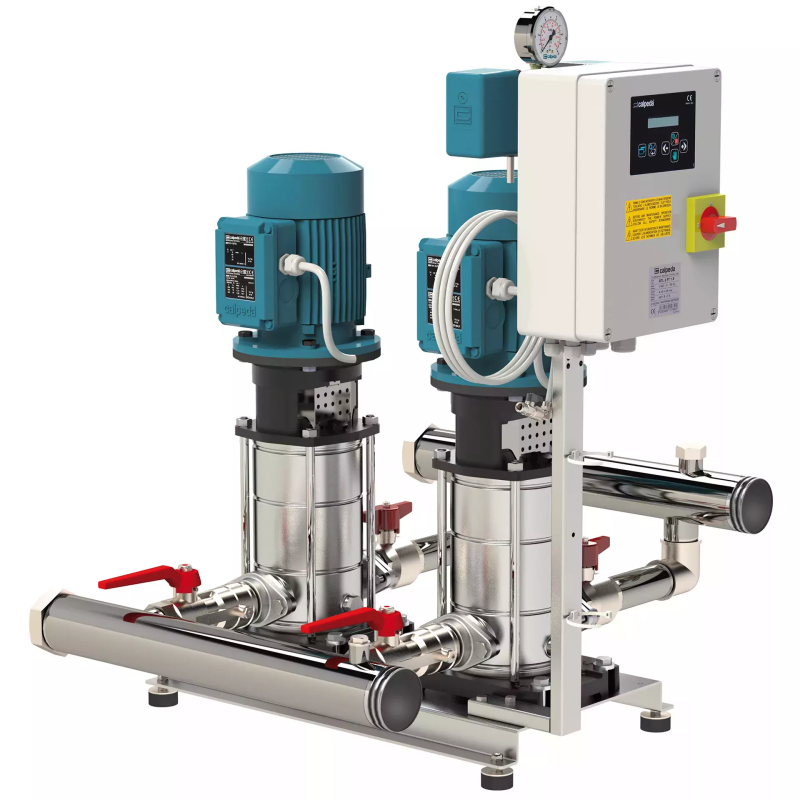

Automatic pressure boosting plant consisting of 1 to 6 vertical multistage pumps complete with ball, non return valve on the suction side and ball valves on the delivery side.
Suction and delivery manifolds made of 1.4301 EN 10088 (AISI 304) for units with 2 and 3 pumps.
Set up for mounting cylindrical tanks with G1 connection.
Electrical control boards:
• with microprocessor control for fixed speed pumps. Motor starting is direct up to 5,5 kW and Y/∆ for powers from 7.5 to 37 kW.
• - with frequency converter for variable speed pump units.
The unit includes one pressure gauge and three adjustable differential pressure switches or pressure transducer.

Model :

Calpeda P2 (kW) :

Calpeda Pressure Switch 1 (bar) :

Calpeda Tank Membrane (litri) :

Calpeda Tank Vessel (litri) :

Applications
To supply water in civil and industrial buildings.
For increasing network pressure (follow local specifications).

Motor
2-pole induction motors, 50 Hz, n ≈ 2900 1/min.
Three-phase
230/400V ± 10% up to a 3 kW
set up for inverter operation;
400/690V ± 10% for 4 kW to 37 kW,
set up for inverter operation.
Single-phase 230 V ± 10%,
Insulation class F.
IP protection: IP55
Constructed in accordance with IEC 60034.
Other voltages and frequencies on request.

Vessels on request
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.

Special features on request
Pressure unit with 4, 5 and 6 pumps

Reference BS1F 1 MXV 25-304 O
