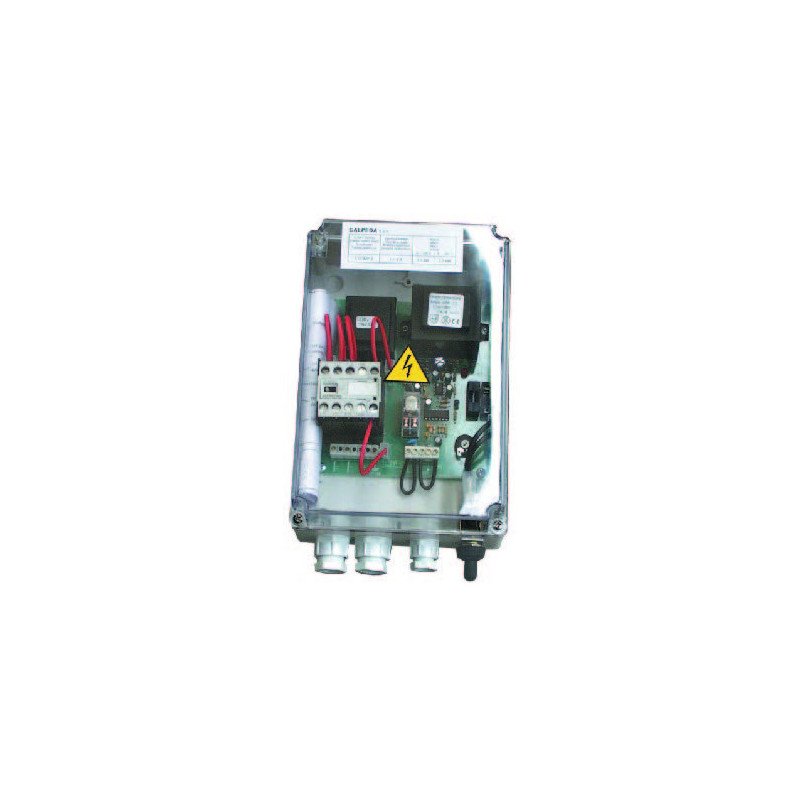

Calpeda Control panel and protection for 1 pump with three-phase motor - T Comp

Review (0)

Construction
Control panel and protection for 1 pump with three-phase motor.
Arranged for the LVBT level control internal connection against dry running (T COMP8 model has the level control as a standard).
Control pumps with pressure switch and float-type switch.

Technical data
Mains 230V or 400V ±10% 50/60 Hz (other voltages on request).

Ambient temperature from -5 °C to +40 °C.
Protection IP 44.

Components
Enclosure in thermoplastic material
ON-OFF control switch

Fuse holder - Contactor - Thermal relay
Fuses for change of voltage: 230 V or 400 V
Transformer
Terminals for pressure switch or float switch connection
Terminals for LVBT board (for T COMP 10,12,16,20 models)
Green LED indicator: voltage ON - Red LED indicator: thermic block
Cable glands

On request
LVBT board for level control (for T COMP 10,12,16,20 models)

Reference 14013130000
