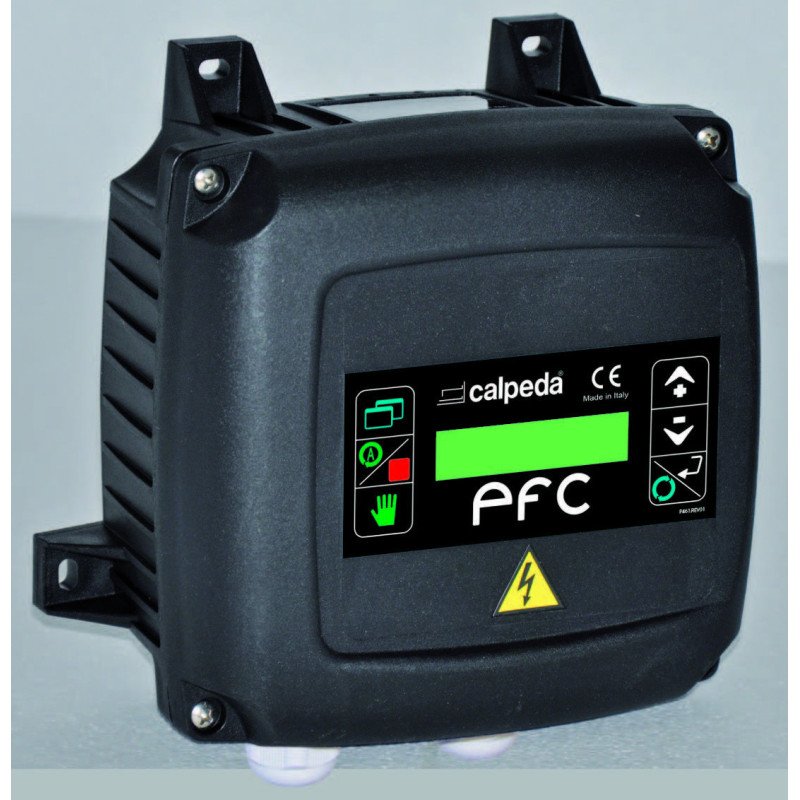

Calpeda Control panel for controlling one submersible pump with single-phase motor - Pfc-M
Review (0)
Construction
Control panel for controlling one submersible pump with single-phase motor.
Electronic control of the operation and dryrunning protection through the power factor (PF) control.
The installation of level probes into the well is not required.
It stops the pump in case of lack of air cushion in the pressure vessel (patented system).
Displayed operating data and alarms available in four languages.
Technical data
Mains single-phase 230V ±10% 50/60 Hz.
Mains single-phase 230V ±10% 50/60 Hz.
- Max output current: 18 A.
- Ambient temperature from -5 °C to +40 °C.
- Relative humidity: from 20% to 90% without condensation
- Protection IP 44.
- Control through pressure switch (pressure booster set).
- Control through float switch (for filling a tank).
- Alarm output signal.
Constructed in accordance with IEC/EN 60439-1.
Setting
- Min – Max voltage range.
- Motor rated current.
- Power factor (PF) value for dry-running protection.
- Up to four programmable restarts in case of no water condition.
Alarms (with pump stop)
No electrical supply.
No electrical supply.
- Undervoltage and overvoltage.
- Motor overload.
- No water.
- No air cushion in the pressure vessel.
Components
Enclosure in thermoplastic material
Capacitor
Terminal board
Enclosure in thermoplastic material
Capacitor
Terminal board
- Display : 2x16 characters.
- 6 button key board.
- In/Out Cable glands.
On request
- RA 100 control panel for remote alarm.
44021000000
