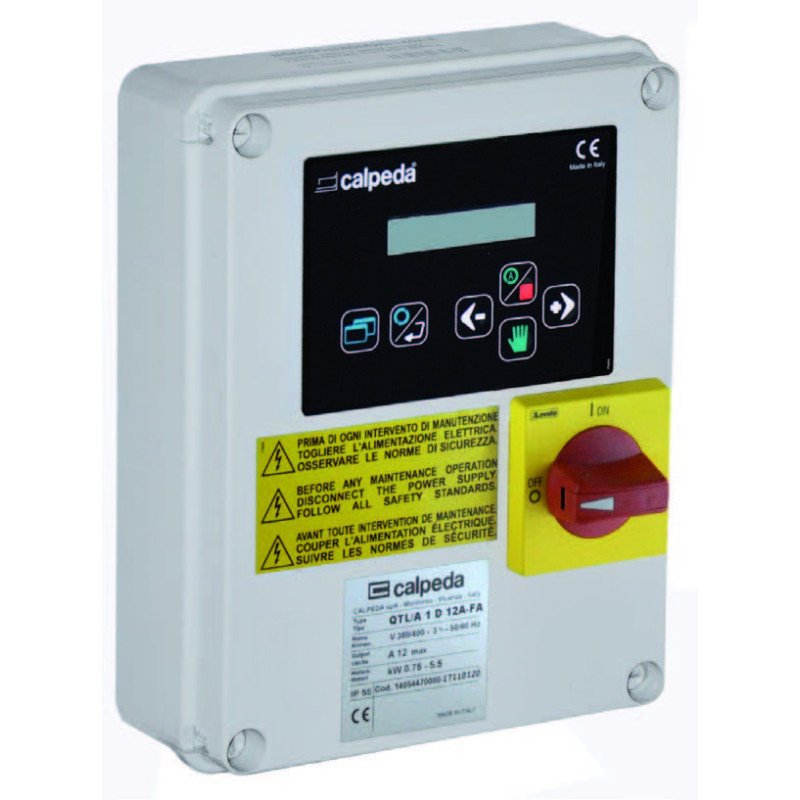

Calpeda Control panel for 1 pump with three-phase motor - Qtl/a 1 D
Review (0)
Construction
Control panel for 1 pump with three-phase motor, direct starting for pressure booster sets and submersible drainage pumps.
Arranged for the capacitor internal connection (for pumps without builtin capacitor).
For pressure booster sets:
with a patented working time-measuring system that stops the pump in case of lack of air cushion in the pressure vessel.
with a patented working time-measuring system that stops the pump in case of lack of air cushion in the pressure vessel.
- dry-running protection with float switch or level control probes.
For submersible drainage pumps:
- automatic operating test of the pump every set hours of inactivity (with pump in the automatic operating mode).
- Pump control with signals coming from:
- 2 float switches: one for starting-up and stopping pump, one for the alarm maximum level (optional).
- 3 float switches: one for starting-up pump, one for stopping the pump and one for the alarm maximum level (optional).
Pump operation controlled by an electronic card type MPS 3000 with microprocessor which allows three different modes of operation of the pump: standard, emergency and timed.
Technical data
Power supply 400V 3~ ±10% 50/60 Hz (other voltages on request).
Power supply 400V 3~ ±10% 50/60 Hz (other voltages on request).
- Ambient temperature from -5 °C to +40 °C.
- Protection IP 44.
Components
Thermoplastic case (metallic for 7,5-9,2-11kW).
Line disconnector with door lock.
Thermoplastic case (metallic for 7,5-9,2-11kW).
Line disconnector with door lock.
- Fuses for power line. - Fuses for auxiliary circuit.
Auxiliary circuit fuses
Starting contactor and thermal relay (for 7,5-9,2-11kW). - Electronic board type MPS 3000 with microprocessor.
- Terminals for pressure trasducer / level probes.
- Connection terminals for thermal protector.
- Connection terminals for the RA 100 - RA 100A type.
- Terminals for pressure switch connection.
- Terminals for float switch connection against dry-running.
Terminals for remote signals - Cable glands.
On request
Volt free contact control panel Q-MSP 9M
RA 100 - RA 100A control panel for remote alarm.
Volt free contact control panel Q-MSP 9M
RA 100 - RA 100A control panel for remote alarm.
14054470000
Specific References
