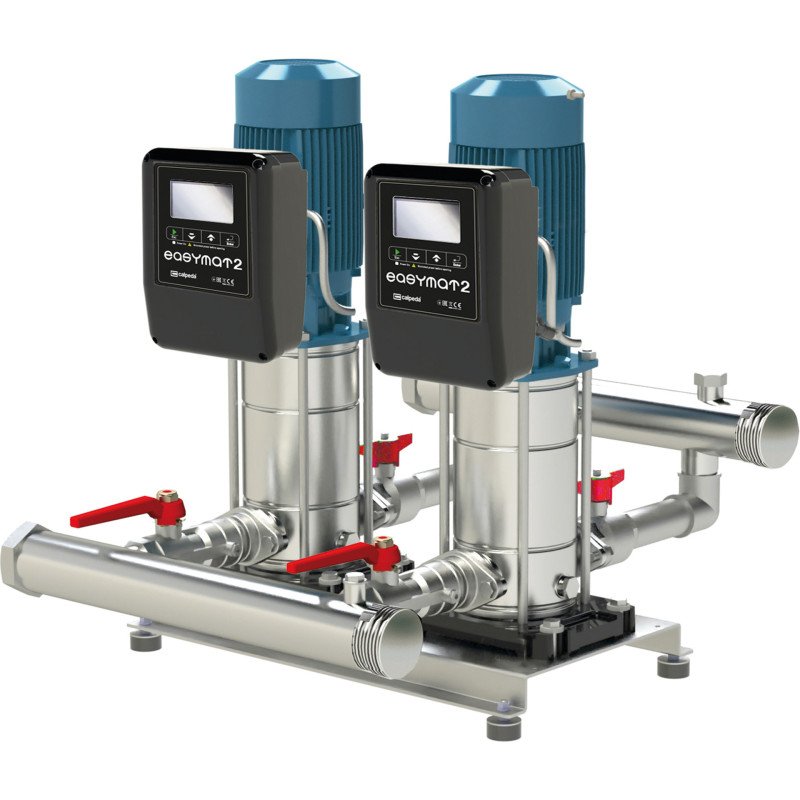

Calpeda Automatic booster set consisting of 2 to 3 vertical multistage pumps - Bs. Mxv-B

Calpeda Automatic booster set consisting of 2 to 3 vertical multistage pumps - Bs. Mxv-B

Review (0)

Construction
Automatic booster set consisting of 2 to 3 vertical multistage pumps complete with ball, non return valve on the suction side and ball valves on the delivery side.
Suction and delivery manifolds for boosting sets with 2,3 pumps in stainless steel AISI 304.
Connections are located on the delivery manifold for the installation of vessels with a G1 connection.

Applications
To supply water in civil and industrial buildings.
As pressure boosting pump to increase water pressure when needed (follow local rules).

Motor
2-pole induction motors, 50 Hz, n ≈ 2900 1/min.
Three-phase: 230/400V ± 10%
set up for inverter operation;
Single-phase: 230V ± 10% (on request)
Insulation class F.
Protection IP54
Constructed in accordance with IEC 60034.
Other voltages and frequencies on request.

Vessels on request
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.

Reference BSM1V 1 MXV-B 25-304 O-EMT
