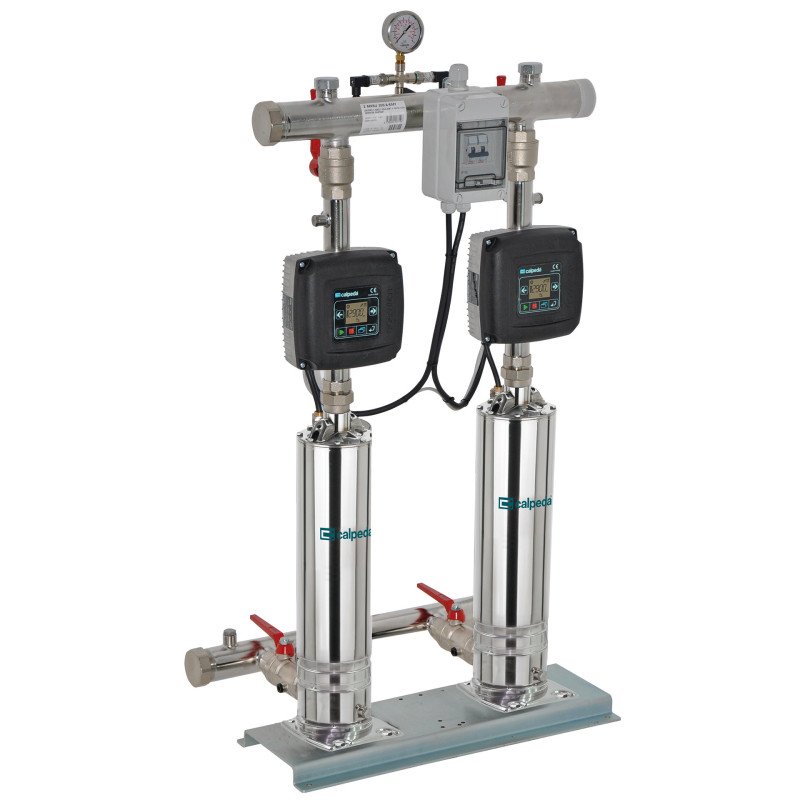

Calpeda Automatic pressure boosting plant consisting - Bs. Mpsu
Review (0)
Construction
Automatic pressure boosting plant consisting of 1 to 6 vertical multistage pumps complete with ball, non return valve on the suction side and ball valves on the delivery side.
Suction and delivery manifolds for boosting sets with 2,3 pumps in stainless steel AISI 304.
Connections are located on the delivery manifold for the installation of vessels G1 connection.
Electrical control boards:
• with microprocessor for fixed speed pump units. Motor starting is D.O.L. up to 5,5 kW and Y/∆ for power rating 7,5 kW.
• with frequency converter for variable speed pump units.
The unit includes one pressure gauge and three adjustable differential pressure switches or pressure transducer.
Applications
To supply water in civil and industrial buildings.
For increasing network pressure (follow local specifications).
To supply water in civil and industrial buildings.
For increasing network pressure (follow local specifications).
Motor
2-pole induction motors, 50 Hz, n ≈ 2900 1/min.
Three-phase 230V - 400V ± 10%;
Single-phase 230 V ± 10%.
Insulation class F.
Protection IP 68.
Constructed in accordance with IEC 60034.
Other voltages and frequencies on request.
2-pole induction motors, 50 Hz, n ≈ 2900 1/min.
Three-phase 230V - 400V ± 10%;
Single-phase 230 V ± 10%.
Insulation class F.
Protection IP 68.
Constructed in accordance with IEC 60034.
Other voltages and frequencies on request.
Vessels on request
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.
Special features on request
Pressure unit with 4, 5 and 6 pumps
Pressure unit with 4, 5 and 6 pumps
BS2F 2 MPSU 304
