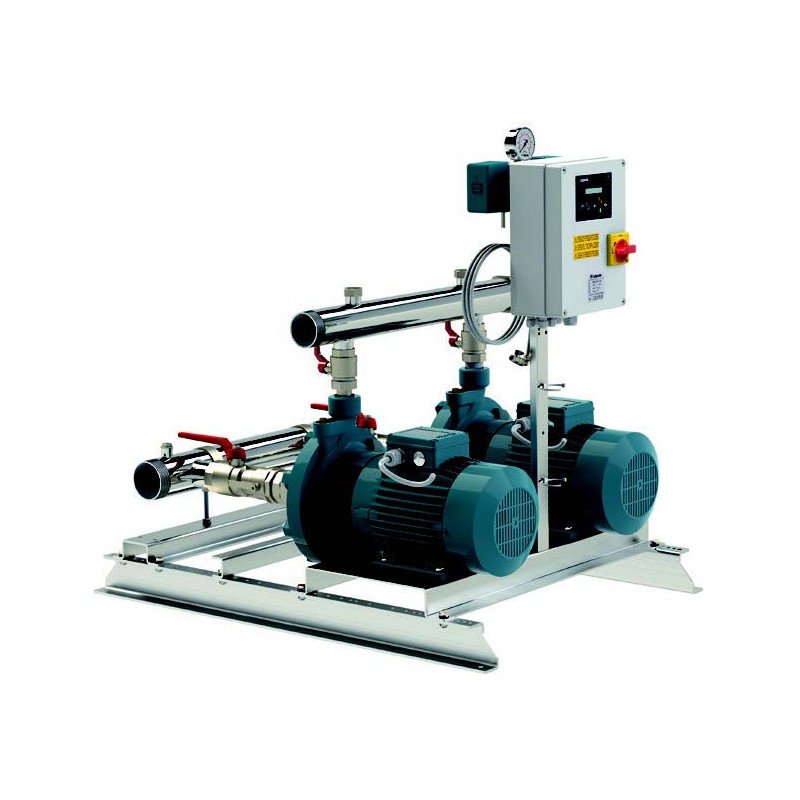

Calpeda Automatic pressure boosting plant consisting of 1 to 6 centrifugal pumps complete with ball - Bs. Nm, Nmd
Review (0)
Construction
Automatic pressure boosting plant consisting of 1 to 6 centrifugal pumps complete with ball, non return valve on the suction side and ball valves on the delivery side.
Suction and delivery manifolds for boosting
Automatic pressure boosting plant consisting of 1 to 6 centrifugal pumps complete with ball, non return valve on the suction side and ball valves on the delivery side.
Suction and delivery manifolds for boosting
- stainless steel AISI 304 up to 2NM 40.. and 3NM 32...
- steel S235JR from 2NM 50.. and 3NM 40... .
Set up for mounting cylindrical tanks with G1 connection.
Electrical control boards: - with microprocessor for fixed speed pump units. Motor starting is D.O.L. up to 5,5 kW and Y/∆ for power rating 7,5 up to 55 kW.
- with frequency converter for variable speed pump units.
The unit includes one pressure gauge and three adjustable differential pressure switches or pressure transducer.
Applications
To supply water in civil and industrial buildings.
For Increasing network pressure (follow local specifications).
To supply water in civil and industrial buildings.
For Increasing network pressure (follow local specifications).
Motor
2-pole induction motors, 50 Hz, n ≈ 2900 1/min, set up for Inverter operation.
Three-phase: 230/400V ± 10% up to 3 kW;
400/690V ± 10% for 4 kW to 55 kW;
Insulation class F.
Protection IP54
Constructed in accordance with: IEC 60034.
Other voltages and frequencies on request.
2-pole induction motors, 50 Hz, n ≈ 2900 1/min, set up for Inverter operation.
Three-phase: 230/400V ± 10% up to 3 kW;
400/690V ± 10% for 4 kW to 55 kW;
Insulation class F.
Protection IP54
Constructed in accordance with: IEC 60034.
Other voltages and frequencies on request.
Vessels on request
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.
When installing the unit, connect in the delivery section to a diaphragm or galvanised tank.
The recommended sized are shown in the following page.
Special features on request
Pressure unit with 4, 5 and 6 pumps
Pressure unit with 4, 5 and 6 pumps
BS2F 2 NMD 20/110B/A
Specific References
