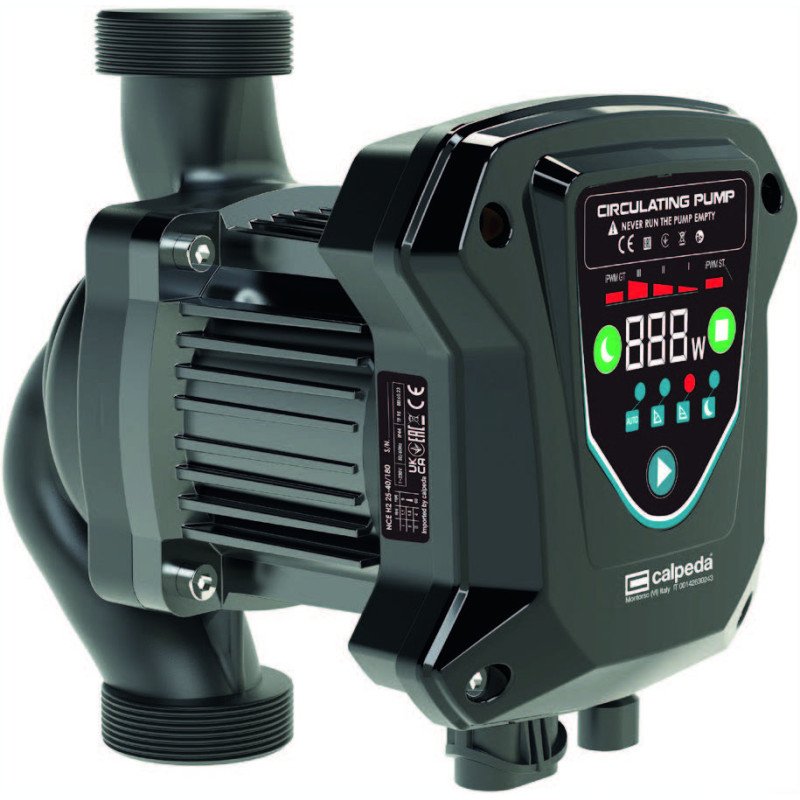

Calpeda Energy saving variable speed circulating pump - Nce H2

Applications
The energy-efficient circulation pump is designed for water circulation in heating systems.
Underfloor heating systems
Single-pipe systems
Two-pipe systems
Pumping liquid:
Clean, non-aggressive and non-explosive liquids, not containing solid particles, fibers or mineral/vegetable oil
In heating systems, water must meet the requirements of accepted standards of water quality in heating systems.

• Liquid temperature from -10 °C to +110 °C
• Ambient temperature from 0 °C to +40 °C
• Maximum permissible working pressure: 10 bar
• Storage: -10°C/+50°C max. relative humidity 95% at 40 °C
• Certifications: in conformity with CE requirements
• Sound pressure ≤ 45 dB (A).
• Max. quantity of ethylene glycol: 40%
• EMC according to: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3.
• Connections: threaded ports ISO 228: G 1 1/2, G 2.
• Flanged connection DN 32 PN 10
• The energy efficiency index of circulators is IEE ≤ 0.23.
• The benchmark for most efficient circulators is EEI ≤ 0,20.

• Synchronous motor with permanent magnet.
  Motor: variable speed
• Standard voltage: single-phase 230 V (-10%;+6%)
• Frequency: 50-60 Hz
• Protection: IP 44
• Insulation class: F
• Overload protection (integrated).
• Cable: phases and neutral.
• Constructed in accordance with: EN 60335-1, EN 60335-2-51.

Designation
NCE H2 32 F - 100 / 180
NCE = Series
H2 = Version
32 = DN ports in mm
F = Flanged connection
100 = Max. head in dm
180 = connection size mm

Operating modes
Automatic mode (factory setting):
In this mode the pump automatically sets the operating pressure, depending on the hydraulic system. This mode is recommended in most systems.

Proportional pressure mode:
The circulator changes the pressure proportionally to the current flow.
The pressure value can be adjusted on three curves.

Constant pressure mode:
The circulator maintains the pressure constant when the reference flow changes.
The pressure value can be adjusted on three curves.

Fixed speed mode:
The circulator works with constant curve and the curve could be changed over three curves.

Night mode:
The pump is changed to an automatic deceleration curve at night, so that it runs at low performance and low energy consumption.

The circulator can operate in:

• automatic mode
• proportional pressure mode
• constant pressure mode
• fixed speed mode
• night mode.
