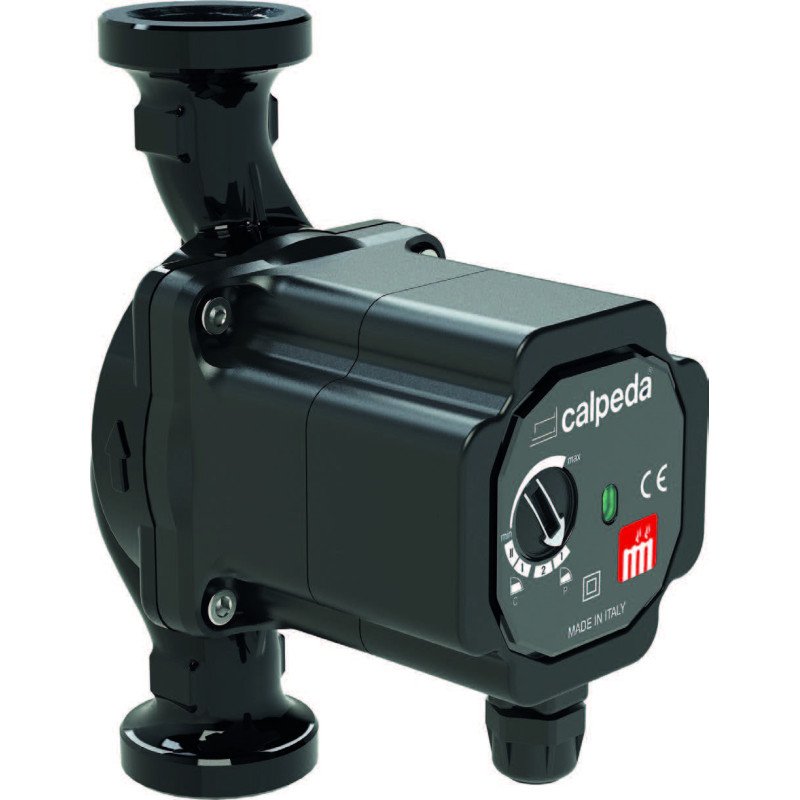

Calpeda Energy saving variable speed circulating pump - Nce Ei

Applications
Small domestic heating systems.
Floor heating systems.

• Liquid temperature from +2 °C to +95 °C
• Ambient temperature from 0 °C to +40 °C
• Maximum permissible working pressure: 6 bar
• Storage: -20°C/+70°C max. relative humidity 95% at 40 °C
• Certifications: in conformity with CE requirements
• Sound pressure ≤ 43 dB (A).
• Minimum suction pressure: 0,3 bar at 50 °C 1,0 bar at 95 °C
• Maximum glycol quantity: 40%
• EMC according to: EN 55014-1, EN 61000-3-2, EN 55014-2
• Connections: threaded ports ISO 228: G 1, G 1 1/2, G 2
• The benchmark for most efficient circulators is EEI ≤ 0,20.
• Minimun power: 3 W.

• Synchronous motor with permanent magnet.
  Motor: variable speed
• Standard voltage: single-phase 230 V (-10%;+6%)
• Frequency: 50-60 Hz
• Protection: IP 44
• Insulation class: H
• Class II appliance
• Overload protection (integrated).
                             1) automatic protection with electronic rotor release
                             2) Overload thermal protector
• Cable: phases and neutral.
• Constructed in accordance with EN 60335-1, EN 60335-2-51.

Special features on request
Brass or cast iron unions.
EPP thermal insulation shell.

Designation
NCE EI 32 - 60 / 180
NCE = Series
EI = Version
32 = DN ports in mm
60 = Max. head in dm
180 = connection size mm

Features
Compact design
The space saving NCE EI is a very compact circulating pump, allows inr easy
installation in small domestic heating systems.
Easy to install and to adjust
Installing the NCE EI is considerably simplified by the quick setting and power
installation plug.
Reliable
Like all our electronic circulating pumps, the NCE EI features the patented
self-cleaning square chamber design, which eliminates any possibility of rotor
blockage.
Ceramic shaft
Hydraulics components are completely painted with cataphoresis.
Program for automatic venting and unblocking routines.
Easy use
Operating range with fixed curves from 0,5 m to 7 m; possibility to choose 2 (1-
2) proportional pressure curves and 2 (I-II) constant pressure curves.
