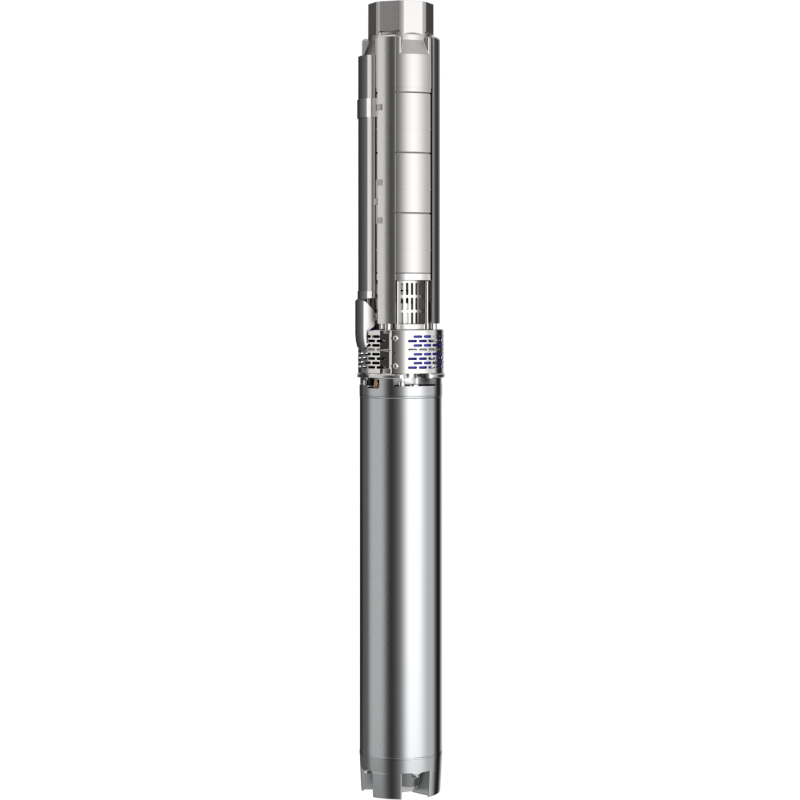

Calpeda Submersible pumps for deep wells 4”, 6”, 8” - Sdx

Applications

For water supply systems.
For civil and industrial applications.
For fire fighting applications.
For irrigation.

Operating conditions
Liquid temperature:

• 35 °C for 4SDX
• 30 °C for 6SDX
• 60 °C for 8SDX
• 90 °C for SDXL
  Maximum amount of sand in the water:
• 50 g/m3 per 4SDX, 6SDX, 8SDX
• 100 g/m3 for SDXL
  Continuous duty.

Designation
Example: 6 SDX L 30 / 17 6SM
6 = Well diameter in inches
SDX = Series
L = Design made of 1.4401 EN 10088 (AISI 316)
30 = Stage identification
17 = Number of stages
6SM = Motor flange coupling

The electropumps comply with the European Regulation no. 547/2012.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Sized for connection to the pumps according to NEMA Standards (10” excluded).
Standard voltages:
single-phase 230 V - up to 2,2 kW for 4” motors.
three-phase         230 V; 400 V, for 4” motors.
                            400 V; 400/690 V for 6-8-10” motors.
Voltage tolerance : ± 10%
In order to limit both current and torque at each starting, for rated motor powers equal to or higher than 7.5 kW, one of the following types of starting is necessary: star/delta, soft starter, stator impedance or autotransformer.
Insulation class: - F for motors 4”
Protection IP 68.
Installation below water level: 100 m for 4”, 150 m for 6”, 500 m for 8,10” 4” motor
Motor suitable operation with frequency converter (with suitable filter dv/dt).
Horizontal installation (6" 37-45kW, 8" 92kW, 10" 170-190 kW excluded)

Special features on request
Other voltages.
Frequency 60 Hz (as per 60 Hz data sheet).
Other temperatures.
Encapsulated motor FK series.

Attention for complete materials refer to the Pump Selector on the Calpeda website.
