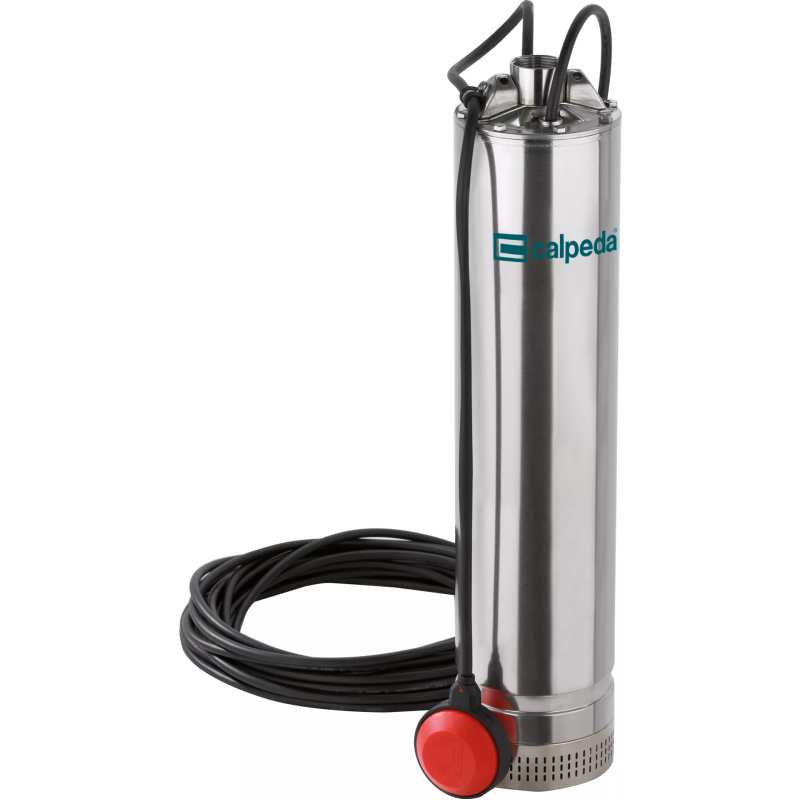

Calpeda 5" Close coupled multi-stage submersible pumps - Mxs

Applications
For water supply from wells, tanks or reservoirs.
For domestic, civil and industrial applications, for garden use, irrigation rain water harvesting systems.

Operating conditions
Liquid temperature up to 35° C.
Minimum internal diameter of well: 140 mm.
Minimum immersion depth: 100 mm.
Maximum immersion depth: 20 m (with suitable cable length).
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
MXS: three-phase            230 V ± 10%;
                                     400 V ± 10%.
                                     Cable: H07RN8-F, length 15 m, without plug.
MXSM: single-phase     230 V ± 10%, with thermal protector.
                                     Incorporated capacitor
                                     Float switch MXSM.. CG up to 10A (on demand)
                                     Cable: H07RN8-F, length 15 m, with plug CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding.
Constructed in accordance with EN 60335-2-41.

Special features on request
Other voltages.
Frequency 60 Hz (as per 60 Hz data sheet).
Cable length 20 m.
Motor suitable for operation with frequency converter.

Designation
Example: MXSM 304
MXS = Series
M = Single-phase (without three-phase indication)
3 = Rated capacity in m3/h
04 = Number of impellers
