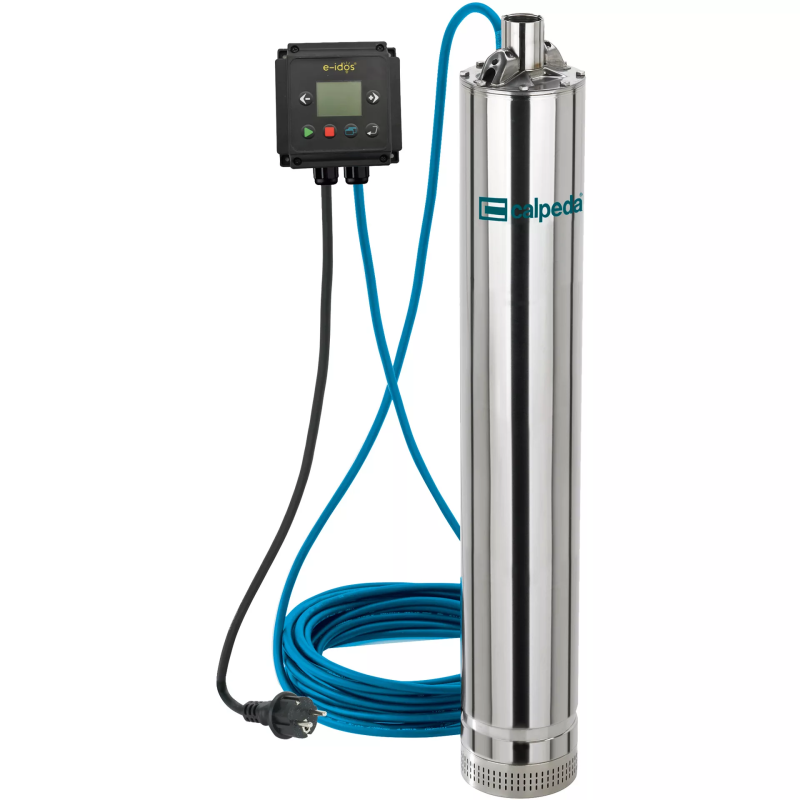

Calpeda 5” Close coupled multi-stage submersible pumps - E-Mps
Review (0)
Construction
5" Close coupled multi-stage submersible pumps. Easy to install, compact
and plug and play with integrated pressure transducer for automatic control of
starting/stopping of the pump when utilization points are opened/closed with
E-MPSM with built-in capacitor, accessible through the delivery casing.
Hydraulics located below the motor with the motor cooled by the pumped fluid.
Safe operation is possible with the motor only partially submerged.
Double shaft seal with oil chamber.
The suction strainer prevents the entrance of solids with diameter bigger than
2 mm.
Applications
For water supply from wells, tanks or reservoirs.
For domestic, civil and industrial applications, for garden use, irrigation
rain water harvesting systems.
For water supply from wells, tanks or reservoirs.
For domestic, civil and industrial applications, for garden use, irrigation
rain water harvesting systems.
Features
high efficiency asynchronous motor
• capacitor less stressed in voltage
• uniform and lower motor temperature
• motor power control
• programmable re-start pressure
• programmable stop pressure
• no hydraulic losses due to the measuring devices
• voltage and current control
• monitoring of maximum starting current
high efficiency asynchronous motor
• capacitor less stressed in voltage
• uniform and lower motor temperature
• motor power control
• programmable re-start pressure
• programmable stop pressure
• no hydraulic losses due to the measuring devices
• voltage and current control
• monitoring of maximum starting current
Protections
• dry-run protection
• overload control and overheating motor control
• pump blockage
• power supply control
• starts per hour control
• dry-run protection
• overload control and overheating motor control
• pump blockage
• power supply control
• starts per hour control
Operating conditions
Liquid temperature: 0 °C to +35 °C.
Minimum internal diameter of well: 140 mm.
Minimum immersion depth: 100 mm.
Maximum immersion depth: 20 m (with suitable cable length).
Continuous duty.
Liquid temperature: 0 °C to +35 °C.
Minimum internal diameter of well: 140 mm.
Minimum immersion depth: 100 mm.
Maximum immersion depth: 20 m (with suitable cable length).
Continuous duty.
Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Single-phase 230 V ± 10%, with thermal protector.
Incorporated capacitor
Cable: - Pump 07BB-F, 3G1+4x0,34 mm2 , length 23 m.
Cable - Power supply cable H07RN8-F, 3G1,5 length 1,5 m
with plug CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding.
Constructed in accordance with EN 60335-2-41.(CEI 61-69)
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Single-phase 230 V ± 10%, with thermal protector.
Incorporated capacitor
Cable: - Pump 07BB-F, 3G1+4x0,34 mm2 , length 23 m.
Cable - Power supply cable H07RN8-F, 3G1,5 length 1,5 m
with plug CEI-UNEL 47166.
Insulation class F.
Protection IP X8 (for continuous immersion).
Triple impregnation humidity-proof dry winding.
Constructed in accordance with EN 60335-2-41.(CEI 61-69)
Designation
Example: E-MPSM 304
E = Electronic
MPS = Series
M = Single-phase (without three-phase indication)
3 = Rated capacity in m3/h
04 = Number of impellers
Example: E-MPSM 304
E = Electronic
MPS = Series
M = Single-phase (without three-phase indication)
3 = Rated capacity in m3/h
04 = Number of impellers
Materials
| Components | Material |
|---|---|
| delivery casing | Chrome-nickel steel 1.4301 EN 10088 (AISI 304) |
| External jacket | Chrome-nickel steel 1.4301 EN 10088 (AISI 304) |
| Suction strainer | Chrome-nickel steel 1.4301 EN 10088 (AISI 304) |
| motor jacket | Chrome-nickel steel 1.4301 EN 10088 (AISI 304) |
| Non-return valve | POM - POLYACETAL |
| Stage casing | PPO-GF20 (Noryl) |
| Impeller | PPO-GF20 (Noryl) |
| Shaft | Chrome-nickel steel 1.4301 EN 10088 (AISI 304) |
| Capacitor cover | PPS Polymer (Grivory) |
| Oil chamber cover | PPS Polymer (Grivory) |
| Support ring preload | PPS Polymer (Grivory) |
| Preload ring stages | PPS Polymer (Grivory) |
| Upper mechanical seal | Steatite, carbon, NBR |
| Lower mechanical seal | Carbone, carburo di silicio, NBR |
| Seal lubrication oil | Oil for food machinery and pharmaceutic use |
E-MPSM 304
