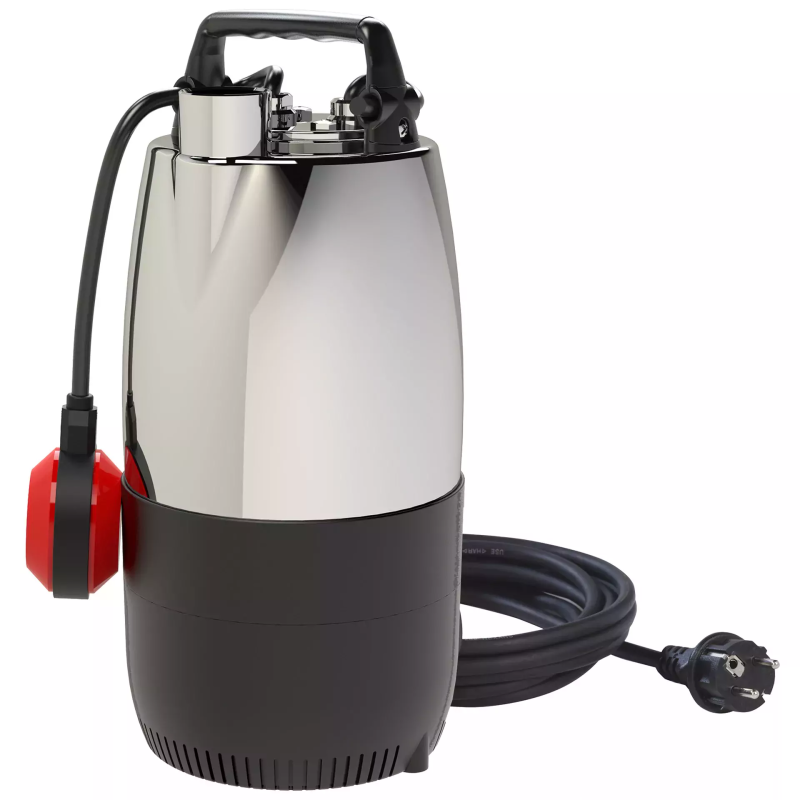

Calpeda Multi-stage centrifugal submersible pumps with pump jacket in chrome-nickelstainless steel - Mp

Applications
For clean water containing solids up to 2 mm grain size.
Draining flooded rooms or tanks.
Water extraction from ponds, flowing streams, or pits for rainwater collection.
For outdoor use a power supply cable of not less than 10 m should be used in
accordance with: EN 60 335-2-41.

Operating conditions
Liquid temperature up to 35° C.
Maximum immersion depth: 5 m.
Minimum water level with float 100 mm.
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
MP: three-phase            230 V ± 10%;
                                     400 V ± 10%.
MPM: single-phase     230 V ± 10%;
with float switch and thermal protector.
Incorporated capacitor
Insulation class F.
Protection IP X8 (for continuous immersion).
Double impregnation humidity-proof dry winding.
Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

Special features on request
Other voltages.
Frequency 60 Hz (as per 60 Hz data sheet).
Other mechanical seal.
Cable length 10 m.
Vertical magnetic float switch.
Motor suitable for operation with frequency converter.

Designation
Example: MP 203/A
MP = Series
2 = Rated capacity in m3/h
03 = Number of impellers
/A = It refers to a revision
