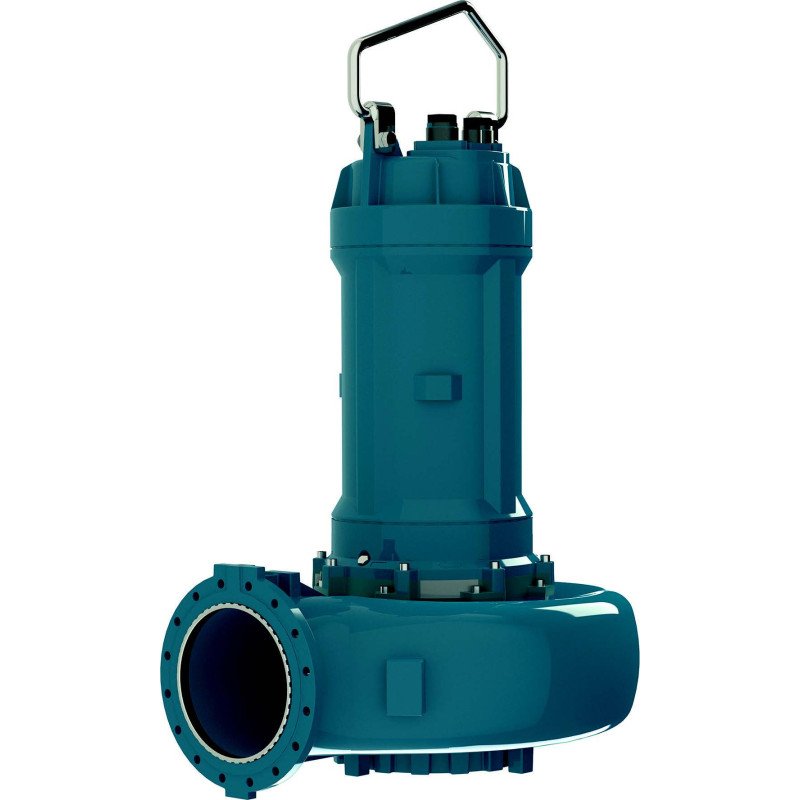

Calpeda Submersible pumps with multi-channel impeller - Gkn
Construction
Submersible pumps with multi-channel impeller.
Characterised by good protection against clogging, large spherical passages,
good wear resistance, low mechanical action on the fluid and high hydraulic
efficiency at high flow rates.
Low vibrations thanks to the dynamically balanced impeller.
Delivery port DN 200-250-300-350.
Applications
For the movement of sewage and sewage grates.
Particularly suitable for the emptying of sewage from cesspits or primary
collection tanks or industrial waste water.
They replace single-channel pumps when a high solids passage diameter is not
required.
Solid passage from 100 to 164 mm.
For the movement of sewage and sewage grates.
Particularly suitable for the emptying of sewage from cesspits or primary
collection tanks or industrial waste water.
They replace single-channel pumps when a high solids passage diameter is not
required.
Solid passage from 100 to 164 mm.
Operating conditions
Liquid temperature: from 0°C to +40°C.
Maximum immersion depth: 20m (with cable of suitable length).
Maximum working pressure: 80 m.w.c.
pH of the liquid to be lifted: 4 ÷ 10
Continuous service (with water at minimum immersion level).
Liquid temperature: from 0°C to +40°C.
Maximum immersion depth: 20m (with cable of suitable length).
Maximum working pressure: 80 m.w.c.
pH of the liquid to be lifted: 4 ÷ 10
Continuous service (with water at minimum immersion level).
Materials
Pump casing: cast iron EN-GJL250 UNI-EN 1561-11
Impeller: cast iron EN-GJL250 UNI-EN 1561-11
Motor casing: cast iron EN-GJL250 UNI-EN 1561-11 / EN-GJL450 UNI-EN
1561-11
Shaft: stainless steel X20Cr13 (AISI420)
Pump mechanical seal with flange size F - H - L - N - P
- motor side: graphite/ceramic
- pump side: silicon/ceramic carbide
Pump mechanical seal with flange size R - Z - T
- motor side: stainless steel/graphite
- pump side: Silicon carbide/silicon carbide
Pump casing: cast iron EN-GJL250 UNI-EN 1561-11
Impeller: cast iron EN-GJL250 UNI-EN 1561-11
Motor casing: cast iron EN-GJL250 UNI-EN 1561-11 / EN-GJL450 UNI-EN
1561-11
Shaft: stainless steel X20Cr13 (AISI420)
Pump mechanical seal with flange size F - H - L - N - P
- motor side: graphite/ceramic
- pump side: silicon/ceramic carbide
Pump mechanical seal with flange size R - Z - T
- motor side: stainless steel/graphite
- pump side: Silicon carbide/silicon carbide
Motor
Induction motor 4-6 or 8 poles, 50Hz
Three-phase version: 400/690V ± 10%
Isolation class: F or H
Degree of protection: IP 68
Max number of starts per hour:
- 20 up to 5 kW
- 15 up to 10 kW
- 10 for higher powers
Cable: length 10m
Direction of rotation: clockwise top view
Motor suitable for operation with frequency converter.
Induction motor 4-6 or 8 poles, 50Hz
Three-phase version: 400/690V ± 10%
Isolation class: F or H
Degree of protection: IP 68
Max number of starts per hour:
- 20 up to 5 kW
- 15 up to 10 kW
- 10 for higher powers
Cable: length 10m
Direction of rotation: clockwise top view
Motor suitable for operation with frequency converter.
Special features on request
(Check feasibility according to the model with our Technical Sales Office).
ATEX versions complying with EN60079-0 - EN60079-1 type I M2 Ex db h I Mb,
II 2G Ex db h IIB T4 Gb.
Impeller in stainless steel AISI 316 or bronze.
Bronze impeller seat ring.
Cable length up to 40 m
Other mechanical seal.
Higher or lower liquid or ambient temperatures.
Ceramic coating.
Internal anti-erosion coating, external anti-corrosion.
(Check feasibility according to the model with our Technical Sales Office).
ATEX versions complying with EN60079-0 - EN60079-1 type I M2 Ex db h I Mb,
II 2G Ex db h IIB T4 Gb.
Impeller in stainless steel AISI 316 or bronze.
Bronze impeller seat ring.
Cable length up to 40 m
Other mechanical seal.
Higher or lower liquid or ambient temperatures.
Ceramic coating.
Internal anti-erosion coating, external anti-corrosion.
Designation
GKN4 200-100A-0260F-X-R
GK = Series
N = Multi-channel impeller
4 = Number of poles
200 = Delivery port diameter in mm
100 = Free passage in mm
A = Impeller trim
0260 = Motor size (P2 = 26 kW)
F = Size of electric motor flanging
X = Versione ATEX
R = With cooling jacket / oil chamber
GKN4 200-100A-0260F-X-R
GK = Series
N = Multi-channel impeller
4 = Number of poles
200 = Delivery port diameter in mm
100 = Free passage in mm
A = Impeller trim
0260 = Motor size (P2 = 26 kW)
F = Size of electric motor flanging
X = Versione ATEX
R = With cooling jacket / oil chamber
Technical data
| TYPE | Version ATEX | Dry chamber version Vertical | Dry chamber version Horizontal | thermal Probes | conductivity Probes | Cable NSSHOU-J | Cable H07RN-F | Class Isolation | Duck foot coupling | Submersible pump rest | Dry chamber pump rest | Dry chamber pump support |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GKN6 200-100A-0075N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | SOK150/N3 |
| GKN6 200-100G-0075N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | SOK150/N3 |
| GKN6 200-100L-0075N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | SOK150/N3 |
| GKN6 200-100A-0110N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN6 200-100G-0110N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN6 200-100L-0110N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN4 200-100A-0260N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN4 200-100D-0210N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN4 200-100G-0193N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN4 200-100L-0165N | o | # | - | • | • | • | - | H / IE3 | SAK 200-250-3 | APK 150 | APCK 200 | - |
| GKN6 250-115A-0195P | o | # | - | • | • | • | - | H / IE3 | SAK 250-300-3 | APK 250 | APCK 250 | - |
| GKN6 250-115D-0150P | o | # | - | • | • | • | - | H / IE3 | SAK 250-300-3 | APK 250 | APCK 250 | - |
| GKN6 250-115I-0110P | o | # | - | • | • | • | - | H / IE3 | SAK 250-300-3 | APK 250 | APCK 250 | - |
| GKN8 300-143A-0210Z | - | - | - | • | • | - | • | F | SAK 300-350-3 | APK 350 | - | - |
| GKN8 300-143D-0170Z | - | - | - | • | • | - | • | F | SAK 300-350-3 | APK 350 | - | - |
| GKN8 300-143B-0210Z-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3 | - | APCK 300 | - |
| GKN8 300-143E-0170Z-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3 | - | APCK 300 | - |
• = Standard o = Optional # = Version with oil chamber # = In case of operation in a dry chamber or with a low level of the pumped liquid, it
- = Not present $ = Version with cooling jacket is necessary to introduce the cooling oil according to the quantities indicated in the
use and maintenance manual
- = Not present $ = Version with cooling jacket is necessary to introduce the cooling oil according to the quantities indicated in the
use and maintenance manual
Technical data
| TYPE | Version ATEX | Dry chamber version Vertical | Dry chamber version Horizontal | thermal Probes | conductivity Probes | Cable NSSHOU-J | Cable H07RN-F | Class Isolation | Duck foot coupling | Submersible pump rest | Dry chamber pump rest | Dry chamber pump support |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GKN6 300-143A-0510R | - | - | - | • | • | • | - | H / IE3 | SAK 300-350-3 | APK 350 | - | - |
| GKN6 300-143D-0420R | - | - | - | • | • | • | - | H / IE3 | SAK 300-350-3 | APK 350 | - | - |
| GKN6 300-143G-0340R | - | - | - | • | • | • | - | H / IE3 | SAK 300-350-3 | APK 350 | - | - |
| GKN6 300-143M-0250R | - | - | - | • | • | • | - | H / IE3 | SAK 300-350-3 | APK 350 | - | - |
| GKN6 300-143B-0510R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 300 | - |
| GKN6 300-143E-0420R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 300 | - |
| GKN6 300-143H-0340R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 300 | - |
| GKN6 300-143N-0250R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 300 | - |
| GKN4 300-143A-1800T | - | - | - | • | • | - | • | F | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143D-1450T | - | - | - | • | • | - | • | F | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143G-1200T | - | - | - | • | • | - | • | F | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143I-1000T | - | - | - | • | • | - | • | F | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143M-0900T | - | - | - | • | • | - | • | F | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143N-0820R | - | - | - | • | • | • | - | H / IE3 | SAK 300-350-3A | APK 350 | - | - |
| GKN4 300-143B-1800T-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3A | - | APCK 300 | SOK350-315 |
| GKN4 300-143E-1450T-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3A | - | APCK 300 | SOK350-280 |
| GKN4 300-143H-1200T-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3A | - | APCK 300 | SOK350-280 |
| GKN4 300-143L-1000T-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3A | - | APCK 300 | SOK350-280 |
| GKN4 300-143P-0900T-R | - | $ | $ | • | • | - | • | F | SAK 300-350-3A | - | APCK 300 | SOK350-250 |
| GKN4 300-143Q-0820R-R | - | # | - | • | • | • | - | H / IE3 | SAK 300-350-3A | - | APCK 300 | - |
| GKN8 350-143A-0420R | - | - | - | • | • | - | • | F | SAK 350-400-3 | APK 350 | - | - |
| GKN8 350-143G-0340R | - | - | - | • | • | - | • | F | SAK 350-400-3 | APK 350 | - | - |
| GKN8 350-143O-0250R | - | - | - | • | • | - | • | F | SAK 350-400-3 | APK 350 | - | - |
| GKN8 350-143S-0210R | - | - | - | • | • | - | • | F | SAK 350-400-3 | APK 350 | - | - |
| GKN8 350-143B-0420R-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3 | - | APCK 350 | SOK350-250 |
| GKN8 350-143H-0340R-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3 | - | APCK 350 | SOK350-225 |
| GKN8 350-143P-0250R-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3 | - | APCK 350 | SOK350-225 |
| GKN8 350-143T-0210R-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3 | - | APCK 350 | SOK350-200 |
| GKN6 350-164S-0510R | - | - | - | • | • | • | - | H / IE3 | SAK 350-400-3A | APK 350 | - | - |
| GKN6 350-164V-0420R | - | - | - | • | • | • | - | H / IE3 | SAK 350-400-3A | APK 350 | - | - |
| GKN6 350-164T-0510R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 350 | - |
| GKN6 350-164W-0420R-R | - | # | - | • | • | • | - | H / IE3 | - | - | APCK 350 | - |
| GKN6 350-164A-1000T | - | - | - | • | • | - | • | F | SAK 350-400-3A | APK 350 | - | - |
| GKN6 350-164B-1000T-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3A | - | APCK 350 | SOK350-280 |
| GKN6 350-164G-0820R | - | - | - | • | • | • | - | H / IE3 | SAK 350-400-3A | APK 350 | - | - |
| GKN6 350-164H-0820R-R | - | # | $ | • | • | • | - | H / IE3 | SAK 350-400-3A | - | APCK 350 | - |
| GKN6 350-164O-0600T | - | - | - | • | • | - | • | F | SAK 350-400-3A | APK 350 | - | - |
| GKN6 350-164P-0600T-R | - | $ | $ | • | • | - | • | F | SAK 350-400-3A | - | APCK 350 | SOK350-280 |
