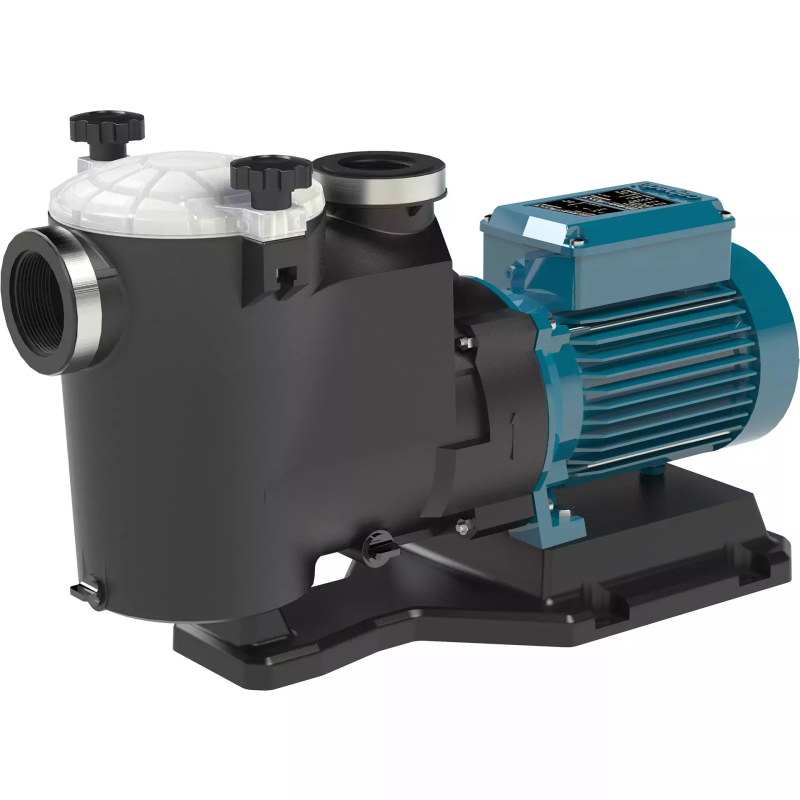

Calpeda Self-priming swimming pool pumps with built-in strainer and a motor insulated from the pumped water - Mpc

Applications

For water circulation in swimming pool filtration systems.

For clean or slightly dirty water with solids in suspension.

Operating conditions

Water temperature up to 60 °C.

Ambient temperature up to 40° C.

Maximum permissible pressure in the pump casing 2,5 bar.

Continuous duty (S3 60% for single-phase pump to 1,5-1,8 kW).

Certification mark for MPCM

SUD geprüfte

Sicherheit

Motor

2-pole induction motor, 50 Hz (n ≈ 2800 1/min).

MPC: three-phase 230/400 V ± 10%,

MPCM: single-phase 230 V ± 10%, with thermal protector. Capacitor inside the

terminal box.

Insulation class F.

Protection IP X4.

IE2 efficiency class for single-phase motors up to 1,1 kW.

IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).

Constructed in accordance with EN 60034-1; EN 60034-30-1.

EN 60335-1, EN 60335-2-41.

Special features on request

Other voltages.

Frequency 60 Hz (as per 60 Hz data sheet).

Designation

Example: MPCM 21/A

MPC = Series

M = Single-phase version (no indication: three-phase)

21 = Pump type

/A = It refers to a revision

Components                                                        Materials

------------------------------------------------------------------------------------------------------------

Pump casing                                                       Noryl PPO-GF30

Diffuser cover                                                     Noryl PPO-GF30

Impeller                                                             Noryl PPO-GF30

Strainer cover                                                     Lexan

Strainer basket                                                   Polypropylene

Diffuser funnel and wear-ring                               Stainless Steel 1.4401 EN 10088 (AISI 316)

Mechanical seal                                                   Carbon - Ceramic - FPM
