calpeda Pre-filters with removable basket - PF

Review (0)

Construction PF

PF type

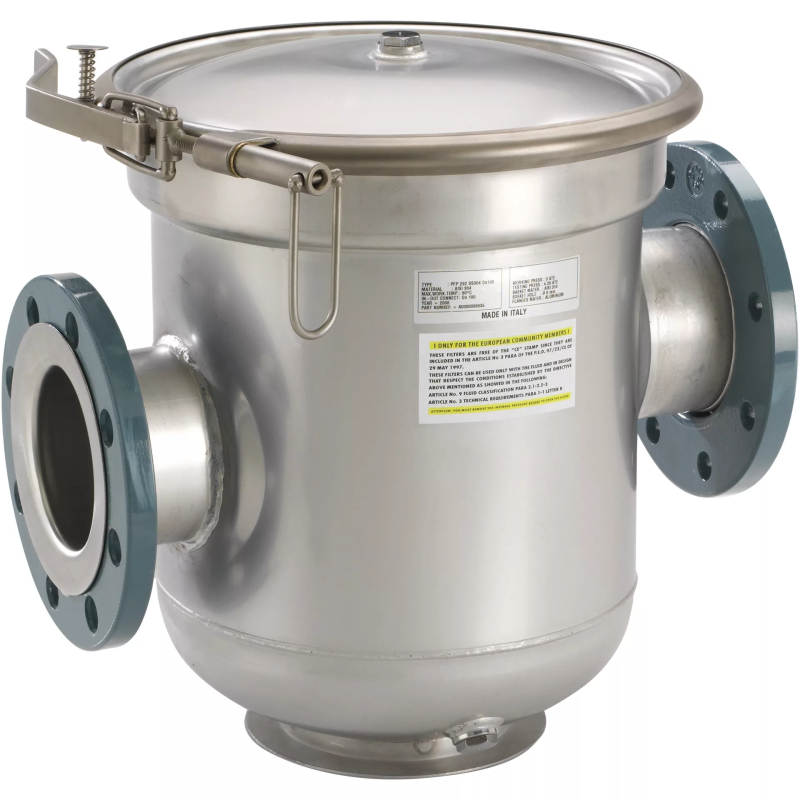

Pre-filters with removable basket, constructed in stainless steel.

Ports with free annular flanges.

Clamp type closing with lever and double adjustment clamp.

Inner basket with Ø 6 mm holes.

Operating conditions

Max working pressure: 0,5 bar.

Liquid temperature up to: PFP 40°C (PF 50°C).

pH value: 6.5-8.

Applications

For water circulation pump in filtration plants in swimming pools.

To prevent foreign bodies from entering the pump and the plant.

Materials

Components Materials

-----------------------------------------------------------------------

PF 100-304 Stainless steel AISI 304

PF 125-304 Stainless steel AISI 304

Pre-filter body PF 150-304 Stainless steel AISI 304

Pre-filter cover PF 100-316 Stainless steel AISI 316

PF 125-316 Stainless steel AISI 316

PF 150-316 Stainless steel AISI 316

Pre-filter body (PFP all) Polypropylene

Pre-filter cover (PFP all) Transparent polypropylene

Strainer basket (all) Stainless steel AISI 316

Reference PF 100
