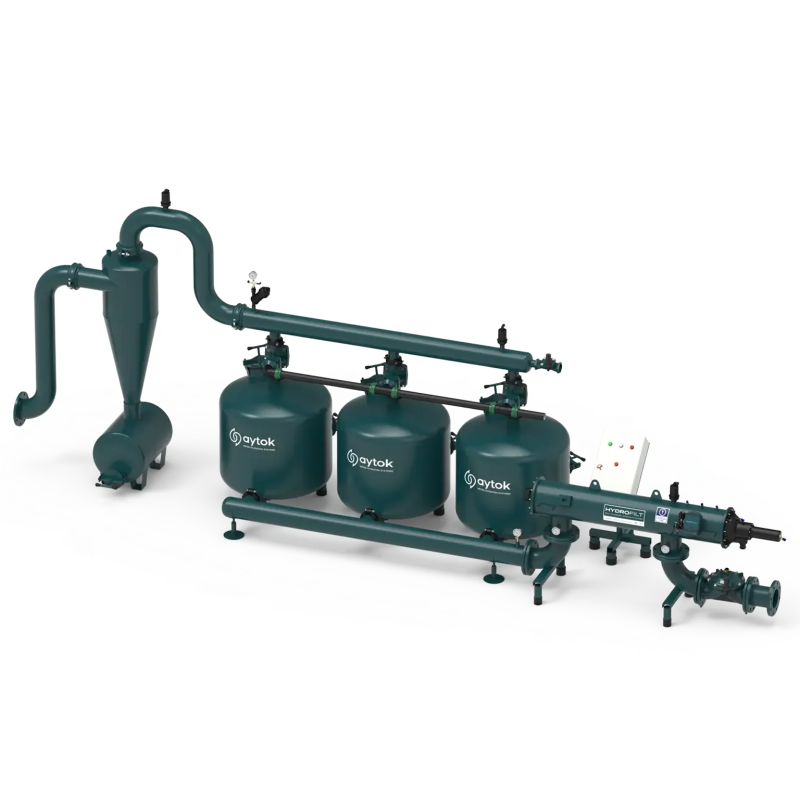

Automatic Sand Media Filter Systems with Self-Cleaning Screen Filters And Hydrocyclone

GENERAL SPECIFICATION

▪️Filter Type                                       : Automatic Screen Filter(VEF), Automatic Screen Filter(EF)

▪️Filter Body Material                          : S235JR, SS304L, SS316L

▪️Screen Material                                : SS304L, PA6GFR30

▪️Collector Material                             : S235JR, SS304L, SS316L

▪️Maximum Working Pressure              : 8 bar ; 116 Psi

▪️Minimum Working Pressure               : 2,5 bar ; 36,2 Psi

▪️Maximum Working Temperature        : 60 °C ; 140°F

▪️Backwash Operation Criteria             : Time and Pressure Differential Setup

▪️Control System                                : Electronic(AC/DC)

▪️Filtration Sensitivity                         : 20-2000 μ (micron)

If the collector material is S235JR

▪️Painting Method                               : Electrostatic Powder Coating

▪️Painting Material                              : Epoxy Polyester

ADVANTAGES OF FLUSHCORE

Intelligent Backflushing: Dual-mode triggers (Pressure & Time) ensure cleaning only when necessary, saving water and energy in any application.

Scalable Control (Out-of-the-Box): Control up to 10 filter stations immediately with a single unit-no extra modules or expansion cards required. This simplifies installation and reduces initial costs.

Centralized Command: Consolidate the control of your entire filter bank into a single, compact, and user-friendly panel.

Universal Integration: Designed for seamless connection with control systems like SCADA.

Versatile Power Compatibility (AC/DC): Offers ultimate installation flexibility. Flushcore operates seamlessly on both standard AC grid power and low-voltage DC sources, making it the perfect solution for any size, regardless of the available power infrastructure.

Reduced Operational Costs: Drastically cut maintenance labor, extend the life of your filter media, and improve overall system efficiency.

Robust & Reliable: Features a durable design built to withstand demanding environments, from the factory floor to the open field.

WORKING PRINCIPLE

The Flushcore operates on a dual-trigger principle to provide intelligent and efficient filter backwashing. It automatically initiates a cleaning cycle based on whichever of two user-set conditions occurs first: a specific pressure differential or a pre-defined time interval. All settings, including the pressure threshold, time interval, and flush duration, are easily configured via a user-friendly interface. A manual backwash function provides operators with on-demand cleaning capability, ensuring complete control over the filtration system.
