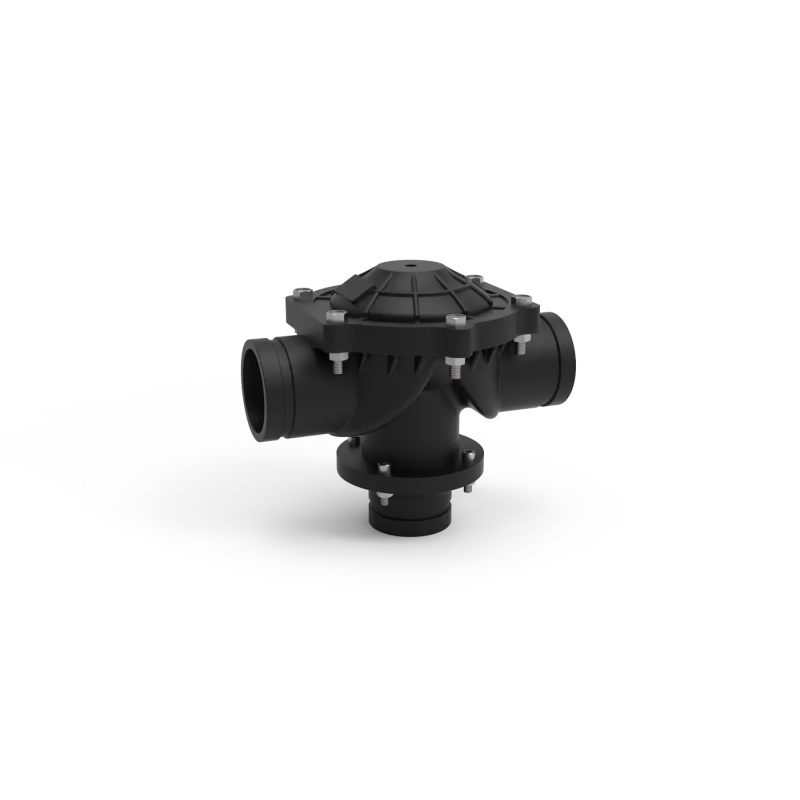

Plastic BACKWASH VALVES

GENERAL SPECIFICATION

▪️Valve Body Material             : PA6GFR30

▪️Diaphragm Material             : Natural Rubber

▪️Shaft Material                     : Stainless Steel

▪️Minimum Working Pressure  : 1 bar ; 14.5 Psi

▪️Maximum Working Pressure : 10 bar ; 145 Psi

ADVANTAGES

Excellent Corrosion Resistance: Naturally resistant to rust and common agricultural chemicals, ensuring long-term operational

integrity.

Lightweight for Easy Handling: Significantly lighter than metal alternatives, making installation and maintenance faster and

more convenient.

Optimized Hydraulic Performance: The advanced internal design minimizes pressure loss, which reduces pump workload and enhances overall system efficiency.

Durable Construction: Made from high-performance composite materials engineered to withstand the rigors of continuous operation.

WORKING PRINCIPLE

The primary function of the backwash valve is to reverse the flow of water to effectively clean the filter. Upon receiving a backwash signal, the valve automatically reconfigures the flow path: it shuts off the incoming contaminated water while simultaneously opening a discharge line. This allows clean, filtered water from the rest of the system to enter the filter backward, forcefully dislodging trapped particles and flushing them out through the newly opened drain. This cycle efficiently restores the filter's performance before the valve returns to its normal filtration position.
