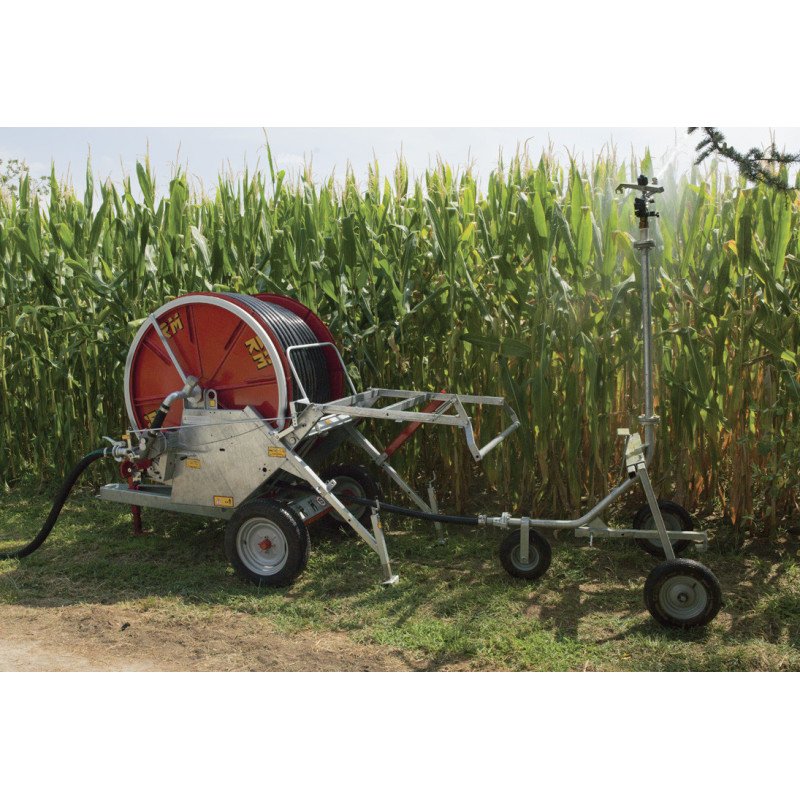

Professional Hose-Reel Irrigator 540 GX

Review (0)

€0.00

Tax excluded

Product by order, delivery time to be confirmed, contact us before ordering.

mod. GX swivelling turret structure

The Gx range of RM hose-reel irrigation machines features a swivelling turret structure, which, by rotating on the fixed bottom frame, allows the reel to be steered towards the desired direction to unwind the hose.

The machine is outfitted with duly oversize telescopic brackets to allow a high anchoring on any kind of ground. They are operated by self-balancing hydraulic cylinders with safety valves, and they ensure the required stability.

The transverse width of the highest reel allows to considerably lower the overall height of RM machines and their barycentre, thus making them among the stablest ones on the market.

Starting from the 790Gx model the machine can be equipped with (optional) the rear unwinding arm of PE hose, by fastening the sprinkler trolley to the ground and towing the irrigation machine. This solution allows unwinding the hose by cancelling the friction on the ground, and exploiting the tracks already present in crops.

The 890Gx, 990Gx and 1000Gx models feature a great clear span of the frame with reference to the ground, thus preventing the underlying crops from being damaged during the hose unwinding.

Monolithic RM frames are free from any screwed structural elements, manufactured in a single block and hot-dip galvanized, designed through a three-dimensional calculation system.

Standard equipment

Flow-distributor turbine with built-in by-pass
PTO for fast hose rewinding
Automatic speed compensator according to the hose winding diameter
Anti-slackening hose safety device
Safety device to stop the machine if the hose winds unevenly
Electronic hose rewinding speed measuring device
Digital clock
Worm screw hose turning system with micrometric regulation and double guide
Reel support on ball bearings and lipped retention ring with stainless steel bushing
Frame swivelling on a ball bearing centre plate through 360°
Trolley lifting at the end of sprinkling by means of the manual crank (or manual hydraulic pump)
Flexible rubber hose to supply the machine, complete with connections
Adjustable trolley track and wheel height SIME sprinkler with slow return and set of nozzles
Pressure-gauge in glycerine bath on the machine Hot-dip galvanized structure (painted reel)
