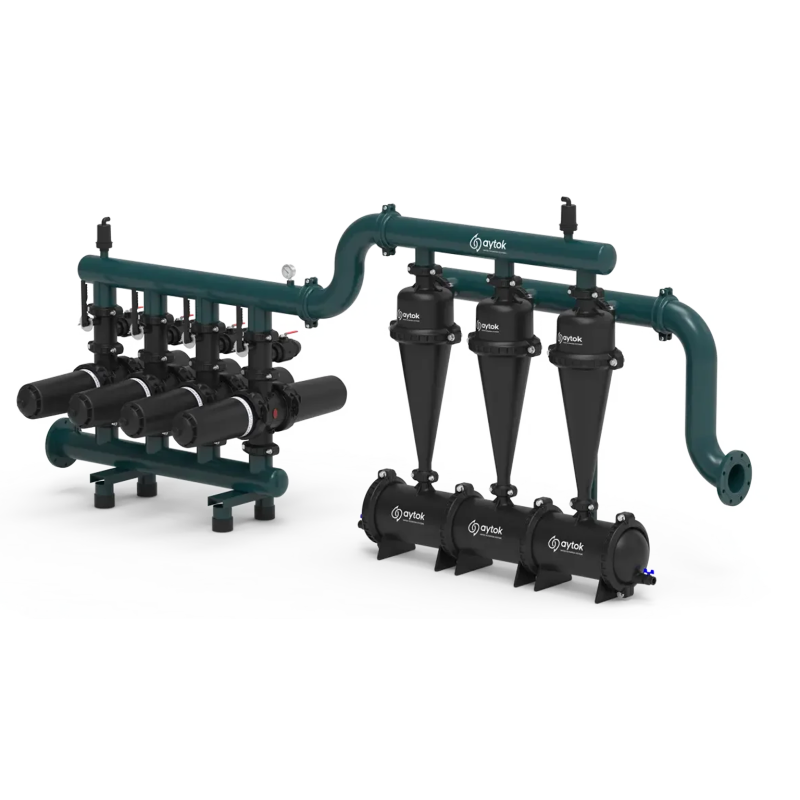

Plastic Manual Double Disc Filter System With Hydrocyclone

GENERAL SPECIFICATION

▪️Plastic Filter Type                       : Manual Disc (DDS), Self Clean Disc (DDSC)

▪️Filter Body Material                    : PA6GFR30

▪️Disc Material                             : PP

▪️Collector Material                      : S235JR, SS304L, SS316L, PE

▪️Maximum Working Pressure       : 6 bar; 87 Psi

▪️Minimum Working Pressure        : DDS:1 bar; 14.5 Psi-DDSC:2 bar;29 Psi

▪️Maximum Working Temperature : 60°C ; 140°F

▪️Backwash Operation Criteria      : Pressure Difference

▪️Control System                        : Manual

▪️Filtration Sensitivity (3×P2030+M534 and 4×P2030+m644) :20, 50,100,130,200 μ (micron)

▪️Filtration Sensitivity (Others)    : 130 μ (micron)

If the collector material is S235JR

▪️Painting Method                      : Electrostatic Powder Coating

▪️Painting Material                     : Epoxy Polyester
