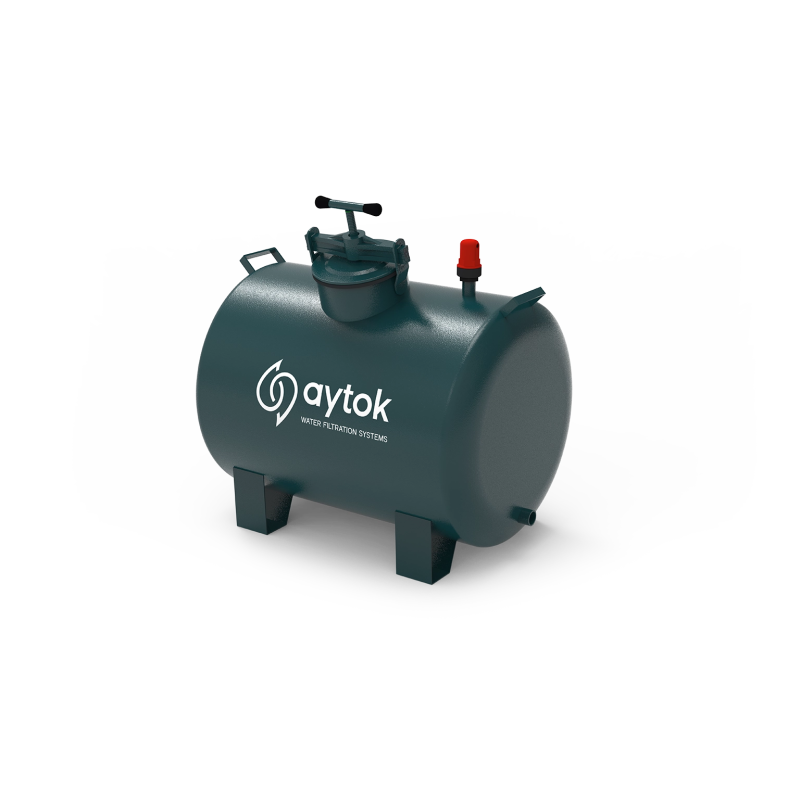

Metal Fertilizer Tanks-10H

GENERAL SPECIFICATION - 10H

▪️ Body Material                            : S235JR

▪️ Maximum Working Pressure        : 8 bar; 116 Psi

▪️ Maximum Working Temperature  : 60°C; 140°F

▪️Painting Method                          : Electrostatic Powder Coating

▪️Paint Coating Material                 : Epoxy-Polyester

CLEANING PROCESS

During the cleaning process, the remaining liquid and accumulated residues inside the tank are flushed out efficiently through the vale, ensuring the system is completely cleared and ready fo

WORKING PRINCIPLE

The fertilizer tank operates based on a pressure differential created by a throttling valve installed between the tank's inlet and outlet lines. To operate the system, the tank is first filled with fertilizer and sealed. Opening only the inlet valve allows high-pressure water to enter and dissolve the fertilizer. After a homogeneous miture is formed, the outlet valve is opened. The pressure difference then drives the fertilizer solution from the tank into the lower-pressure main line for distribution.
