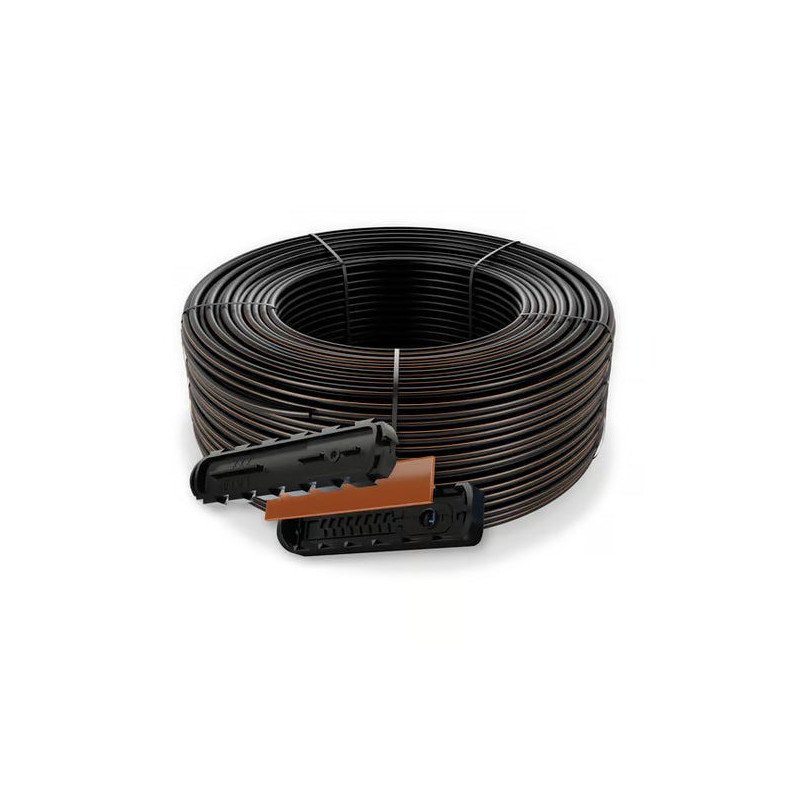

UniWine™ RC 16010 - with assembly ring - 14770

Benefits & Features

• Pressure-compensated
  Precise and equal amounts of water delivered over a broad pressure range, ensuring 100% uniformity of water and nutrient distribution along the laterals.
• Drainage mechanism
  The dripper integrates a drainage mechanism that drains water from the pipe at the end of the irrigation cycle, to allow easier recoiling of the dripline at the end of the crop cycle. Also helps in countries where temperatures may drop below zero.
• Continuously self-flushing
  Flushes debris throughout operation, while ensuring constant dripper operation even in challenging water quality.
• Physical root barrier
  Better protection against root intrusion, utilizing unique dripper design that creates physical barriers protecting the dripper from root growth into its labyrinth.
• Wide filtration area
  Ensures optimal performance even under harsh water conditions, preventing the entrance of sediment into the labyrinths.
• Wide water passages
  TurboNet™ labyrinth ensures wide water passages, large deep and wide cross-section that improves clogging resistance. The water is drawn into the dripper from the stream center, preventing the entrance of sediments into the drippers.
• Anti-migration ring
  Optional, assembled anti-migration ring, helpful for hanging the driplines on metal wires.
• Hybrid (optional)
  New patented add-on to UniRam™, features an on line saddle that allows to combine the benefits of an integral dripper to connect Netafim™ press fit adaptors and prevents drop migration on slops in certain conditions*.

Please contact your Netafim™ local representative to get more information on the drop migration feature.

Specifications

• Pressure-compensated range: 0.5 - 4.0 bar.
  Largest filter in the industry. Recommended filtration: depending on dripper flow rate. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone should be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pre treatment it
• should be applied following Netafim™ expert instructions.
• Double TurboNet™ labyrinth with large water passage.
• Weldable into thick wall driplines (1.00, 1.20 mm).
• Injected dripper, very low CV with injected silicon diaphragm.
• UV resistant. Resistant to standard nutrients used in agriculture.
• Compliance ISO 9261 international standards.
• Two violet stripes for easy identification.
