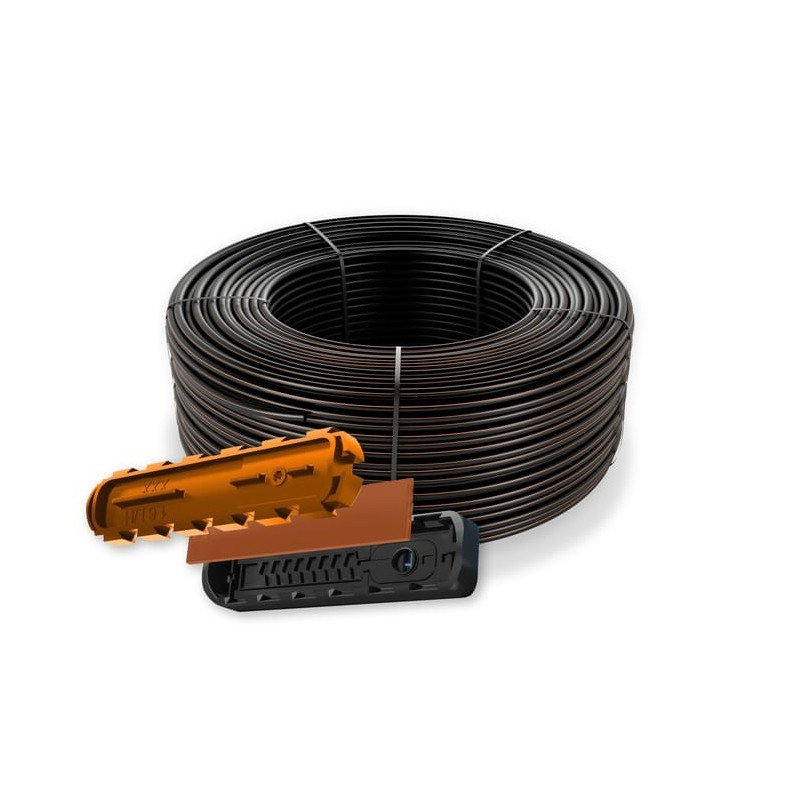

UniRam™ AS XR 20010 - 14380

Benefits & Features

• Extra root intrusion protection (XR)
  Drippers are protected against root intrusion better than all other options, utilizing a patented root inhibitor within the dripper cover that prevents root intrusion into the dripper labyrinth. Better protection against root intrusion without reliance on chemicals. Long-lasting protection due to non-migrating active ingredients embedded in the dripper cover.
• Pressure-compensated
  Precise and equal amounts of water delivered over a broad pressure range, ensuring 100% uniformity of water and nutrient distribution along the laterals.
• Anti-siphon mechanism
  Prevents contaminants from being drawn into the dripper, making it ideal for sub surface applications.
• Continuously self-flushing
  Flushes debris throughout operation, while ensuring constant dripper operation even in challenging water quality.
• Physical root barrier
  Better protection against root intrusion, utilizing unique dripper design that creates physical barriers protecting the dripper from root growth into its labyrinth.
• Wide filtration area
  Ensures optimal performance even under harsh water conditions, preventing the entrance of sediment into the labyrinths.
• Wide water passages
  TurboNet™ labyrinth ensures wide water passages, large deep and wide cross-section that improves clogging resistance. The water is drawn into the dripper from the stream center, preventing the entrance of sediments into the drippers.
• Hybrid (optional)
  New patented add-on to UniRam™, features an on line saddle that allows to combine the benefits of an integral dripper to connect Netafim™ press fit adaptors and prevents drop migration on slopes in certain conditions*.

Please contact your Netafim™ local representative to get more information on the drop migration feature.

Specifications

• Pressure-compensated range: 0.5 - 4.0 bar.
• Largest filter in the industry. Recommended filtration: depending on dripper flow rate. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone should be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pre treatment it should be applied following Netafim™ expert instructions.
• Double TurboNet™ labyrinth with large water passage.
• Weldable to thick wall driplines (0.90, 1.00, 1.20 mm).
• Injected dripper, very low CV with injected silicon diaphragm.
• High UV resistant. Resistant to standard nutrients used in agriculture.
• Compliance ISO 9261 international standards.
