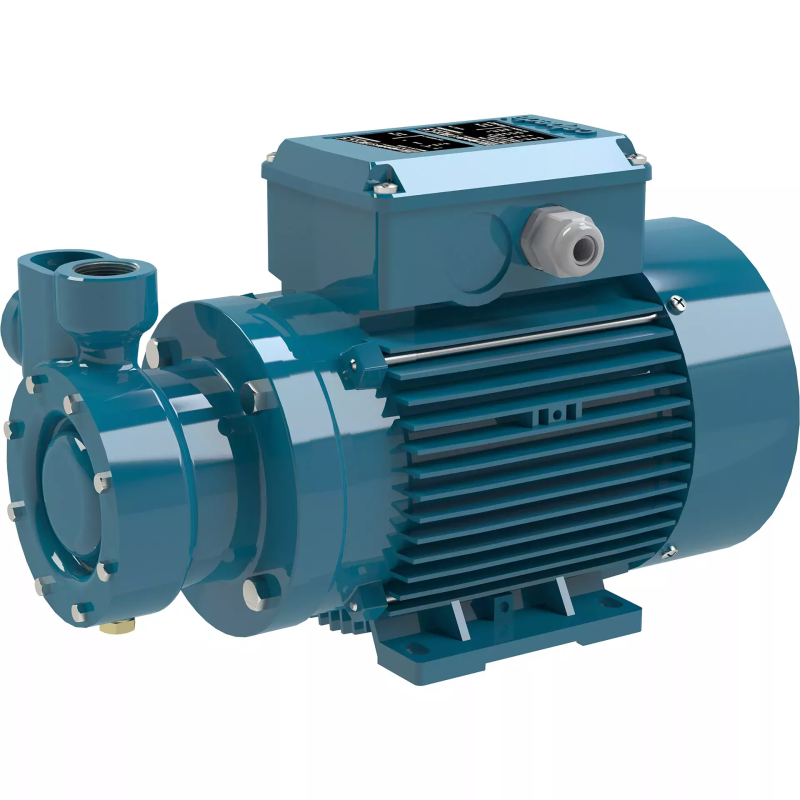

Calpeda Peripheral close coupled electropumps - T, Tp

Applications

For clean liquids without abrasives, without suspended solids, non-explosive and non-aggressive for the pump materials.

For increasing network pressure (follow local regulations).

Due to their compact dimensions, these pumps are highly suitable for installation in cooling and air-conditioning systems and equipment, as well as for circulation applications.

Operating conditions

Liquid temperature from -10 °C to +90 °C.

Ambient temperature up to 40 °C.

Total suction lift up to 7 m.

Maximum permissible pressure in the pump casing: 12.5 bar, (16 bar for TP series).

Continuous duty.

Motor

2-pole induction motor, 50 Hz (n ≈ 2900 rpm).

T, TP: three-phase 230/400 V ± 10%.

                            400/690 V ± 10%, from 4 to 7.5 kW;

TM, TPM: single-phase 230 V ± 10% with thermal protector.

Capacitor inside the terminal box.

Insulation class F.

Protection IP54.

IE2 efficiency class for single-phase motors.

IE3 efficiency class for three-phase motors (IE2 up to 0.65 kW).

Constructed in accordance with EN 60034-1; EN 60034-30-1.

EN 60335-1, EN 60335-2-41.

Special features on request

Other voltages.

Frequency 60 Hz (as per 60 Hz data sheet).

IP protection: IP55.

Special mechanical seal.

Higher or lower liquid or ambient temperatures.

Construction with bearing bracket.

Designation

BTM 61E

B = Bronze version (no indication: the pump is in the Cast Iron version)

T = Series

M = Single-phase version (no indication: three-phase)

61 = Nominal impeller diameter

E = It refers to a revision

Materials

Component                                                        T, TP                                BT, BTP

------------------------------------------------------------------------------------------------------------

Pump casing                                                       Cast iron GJL 200 EN 1561            Bronze CC480K EN 1982

Lantern bracket                                                   Cast iron GJL 200 EN 1561            Bronze CC480K EN 1982

Casing cover                                                      Cast iron GJL 200 EN 1561            Bronze CC480K EN 1982

Impeller                                                          Brass CW617N EN 12165 for T 61-65-70 Brass CW617N EN 12167

Impeller                                                          Bronze CC480K EN 1982 for TP 132-132R Brass CW617N EN 12167

Shaft                                                             Steel 1.4305 EN 10088 (AISI 303) for T 76, TP 80-100 Stainless Steel 1.4401 EN 10088 (AISI 316)

Shaft                                                             Steel 1.4104 EN 10088 (AISI 430F) for T 61-65-70-100, TP 78-132-132R Stainless Steel 1.4401 EN 10088 (AISI 316)

Mechanical seal                                                   Carbon - Ceramic - NBR               Carbon - Ceramic - NBR
