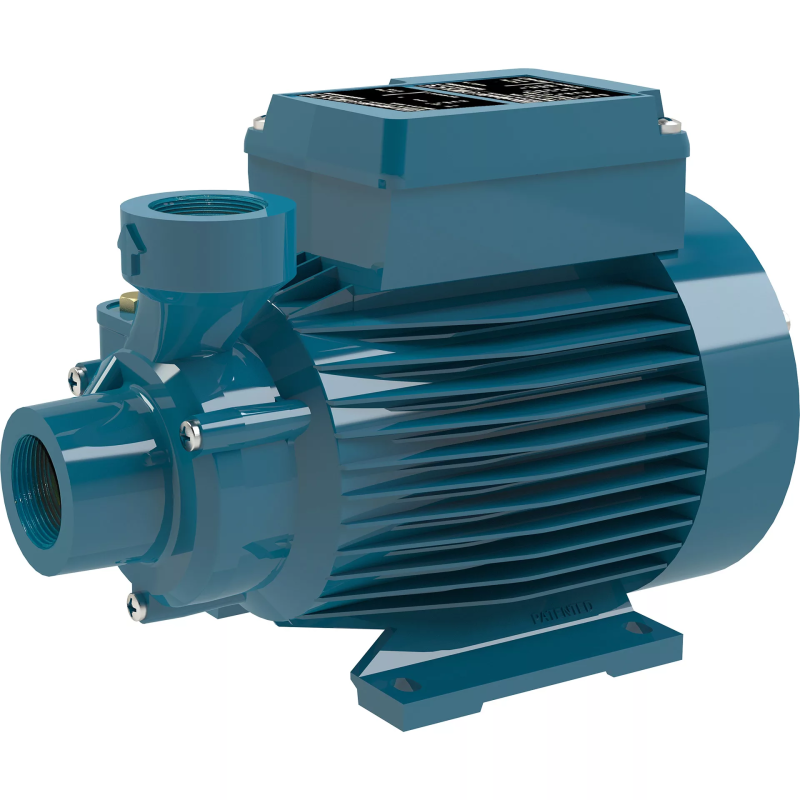

Calpeda Peripheral close coupled electropumps - Ct

Applications

For clean liquids without abrasives, without suspended solids, non-explosive and non-aggressive for the pump materials.

For increasing network pressure (follow local regulations).

Due to their compact dimensions, these pumps are highly suitable for installation in cooling and air-conditioning systems and equipment, as well as for circulation applications.

Operating conditions

Liquid temperature up to 60 °C.

Ambient temperature up to 40 °C.

Total suction lift up to 7 m.

Continuous duty. (S3 60% for three-phase).

Motor

2-pole induction motor, 50 Hz (n ≈ 2900 rpm).

CT: three-phase 230/400 V ± 10%.

CTM: single-phase 230 V ± 10%, with thermal protector.

Capacitor inside the terminal box.

Insulation class F.

Protection IP54.

IE2 efficiency class for single-phase motors.

IE2 efficiency class for three-phase motors.

Constructed in accordance with EN 60034-1; EN 60335-1, EN 60335-2-41.

Special features on request

Other voltages.

Frequency 60 Hz (as per 60 Hz data sheet).

Special mechanical seal.

Designation

BCTM 61/A

B = Bronze version (no indication: the pump is in the Cast Iron version)

I = Stainless steel version (no indication: the pump is in the Cast Iron version)

CT = Series

M = Single-phase version (no indication: three-phase)

61 = Nominal impeller diameter

/A = It refers to a revision

Materials

Component                                                        CT                                                      BCT 61                                           ICT 61

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Pump casing                                                       Cast iron GJL 200 EN 1561                Bronze CC480K EN 1982                   Stainless steel Cr-Ni-Mo 1.4401 EN 10088 (AISI 316)

Casing cover                                                      Brass CW617N EN 12167                   Brass CW617N EN 12167                  Brass CW617N EN 12167

Impeller                                                            Brass CW617N EN 12167                   Brass CW617N EN 12167                  Brass CW617N EN 12167

Shaft                                                                Stainless Steel 1.4104 EN 10088        Stainless Steel 1.4104 EN 10088       Stainless Steel 1.4104 EN 10088

                                                                       (AISI 430F)                                      (AISI 430F)                                      (AISI 430F)

Mechanical seal                                                   Carbon - Ceramic - NBR                   Carbon - Ceramic - NBR                Carbon - Ceramic - NBR
